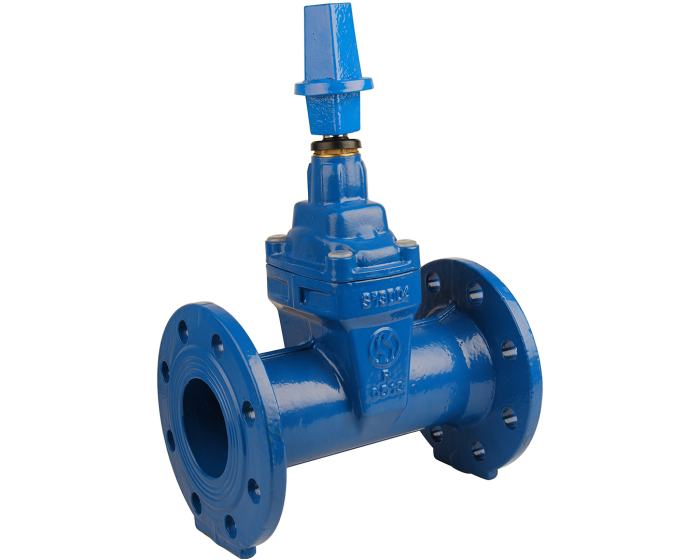

The 184 series gate valve, rubber, clockwise closing, EPDM gate, DIN 3202 F5 gap for drinking water, water treatment and supply and irrigation
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Bonnet material | Cast iron EN GJS-500-7 |
| Construction standard | DIN EN 1171 |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 250.00 |
| DIN face-to-face standard | DIN 3202-1 F5 |
| Face to face standard | EN 558 series 15. DIN 3202-1 F5 |
| Tightness test standard | EN 12266-1. Rate A |
| Bonnet | Bolted |
| Closing direction | Clockwise (CW) |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Torque (Nm) | 15 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 240.0 |
| Kv (m³/h) | 118.0 |
| Body material | Ductile iron |
| Gate material | Cast iron EN GJS-500-7 + EPDM |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 5005 |
| Seats | Cast iron |
| TS max (°C) | 70 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| Main product colour | Blue |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Full DN40 - 1''1/2 Flanged PN10/16 | 184040 | S1010380 |
€63.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN50 - 2'' Flanged PN10/16 | 184050 | S1010381 |
€70.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN65 - 2''1/2 Flanged PN10/16 | 184065 | S1010382 |
€84.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN80 - 3'' Flanged PN10/16 | 184080 | S1010383 |
€100.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN100 - 4'' Flanged PN10/16 | 184100 | S1010384 |
€135.33
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN125 - 5'' Flanged PN10/16 | 184125 | S1010385 |
€167.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN150 - 6'' Flanged PN10/16 | 184150 | S1010386 |
€224.34
(excl. btw)
|
add to cart |
